【金融风控系列】_[0]_零基础学习评分卡模型

这里的样本区分，指的是针对不同的样本进行细分。

## 工作包准备，numpy和pandas是常用的数据分析第三方包import numpy as npimport pandas as pd
from scipy.stats import chi2

## 利用pandas自带的read_csv导入数据，导入的数据会转化为pandas数据格式，dataframe类型train = pd.read_csv('./work/data.csv')

#### 对数据集进行描述性统计分析 ###numerical = ['Collateral_valuation',             'Age',             'Properties_Total',             'Amount',             'Term',             'Historic_Loans',             'Current_Loans',             'Max_Arrears']

categorical = ['Region',               'Area',               'Activity',               'Properties_Status']

binaray = ['Guarantor',           'Collateral']### 将目标变量单独赋值给一个变量target_var = ['Defaulter']

train_X = train[numerical + categorical + binaray]
train_Y = train[target_var]

train_X.describe()

### 首先将类别变量转换为虚拟变量，方便之后做数据探索dummy_region = pd.get_dummies(train_X["Region"],prefix='Region')
dummy_region_col = list(dummy_region.columns)
dummy_area = pd.get_dummies(train_X["Area"],prefix='Area')
dummy_area_col = list(dummy_area.columns)
dummy_activity = pd.get_dummies(train_X["Activity"],prefix='Activity', dummy_na=True)
dummy_activity_col = list(dummy_activity.columns)
dummy_status = pd.get_dummies(train_X["Properties_Status"],prefix='PropertiesStatus')
dummy_status_col = list(dummy_status.columns)
dummy_col_dict = {"Region":dummy_region_col, "Area":dummy_area_col, "Activity":dummy_activity_col, "Properties_Status":dummy_status_col}

### 分别取自变量数据集和目标变量数据集train_X = pd.concat([train[numerical+binaray],dummy_region, dummy_area, dummy_activity, dummy_status], axis=1)
train_Y = train[target_var]

train = pd.concat([train_X, train_Y], axis=1)### 对数据集做描述性分析train_X.describe()

### 基于target变量，分别进行describetrain[train['Defaulter']==0].describe()

train[train['Defaulter']==1].describe()

## 数据探索--协方差和相关矩阵%matplotlib inline
%config InlineBackend.figure_format = 'retina'train.cov()
train.corr()### 绘制直方图和箱形图from matplotlib import pyplot as plt
plt.hist(train[train['Defaulter']==0]['Age'],color='blue',label='Class 0',alpha=0.5,bins=20)
plt.hist(train[train['Defaulter']==1]['Age'],color='red',label='Class 1',alpha=0.5,bins=20)

plt.legend(loc='best')
plt.grid()
plt.show()

train[['Defaulter', 'Age']].boxplot(by='Defaulter',layout=(1,1))
plt.show()

## 首先做缺失值处理missing = train_X.isnull().sum()
missing = missing[missing > 0]
missing.sort_values(inplace=True)
missing.plot.bar()

## 两列缺失值，一列是当前在还贷款总额，一列是抵押物价值，从数据看出，抵押物价值为空，就是没有抵押物的意思，已有是否有抵押物表示，这列变量不用对空值处理### 一列是当前在还贷款总额，如果为空，则表示当前没有在还贷款，遵循空值即信息的原则train_X.loc[train_X['Current_Loans'].isnull(), 'Current_Loans_nan'] = 1train_X.loc[train_X['Current_Loans_nan'].isnull(), 'Current_Loans_nan'] = 0binaray = binaray + ["Current_Loans_nan"]


train = pd.concat([train_X, train_Y], axis=1)### 将方差较小的变量，直接选择进行剔除,阈值选择0.001 #### 针对数值变量做方差筛选drop_col = list()for col in numerical:
    col_var = train_X[col].var()    if col_var < 0.001:
        drop_col.append(col)
        train_X.drop(axis=1, columns=col, inplace=True)

numerical = list(set(numerical).difference(set(drop_col)))
train = pd.concat([train_X, train_Y], axis=1)

### 缺失值处理完成过后，如果样本比例不均匀，则进行样本调整，本例子的样本比例在1:5,因此可以不用对样本比例进行调整##### 统计目标变量好样本和坏样本的个数'''
neg_Y = train_Y.sum()
pos_Y = train_Y.count() - neg_Y

### 好坏样本的比例差距过大，我们采用分层抽样的方法，对样本比例做调整
### 将数据集好坏样本进行区分，P_train为好样本数据集，N_train为坏样本数据集
P_train = train[train['Defaulter'] == 0]
N_train = train[train['Defaulter'] == 1]

### 对好样本进行抽样，抽样个数选择坏样本个数的5倍
P_train_sample = P_train.sample(n=N_train.shape[0] * 5, frac=None, replace=False, weights=None, random_state=2, axis=0)
print P_train_sample.shape
print N_train.shape

### 将抽样的好样本数据集与坏样本数据集合并，重新生成训练集
train_sample = pd.concat([N_train,P_train_sample])
print train_sample.shape

### 将新训练集的index进行重排
train_sample= train_sample.sample(frac=1).reset_index(drop=True)
'''

## 自写卡方最优分箱过程def get_chi2(X, col):
    '''
    计算卡方统计量
    '''
    # 计算样本期望频率

    pos_cnt = X['Defaulter'].sum()
    all_cnt = X['Defaulter'].count()
    expected_ratio = float(pos_cnt) / all_cnt

    # 对变量按属性值从大到小排序
    df = X[[col, 'Defaulter']]
    df = df.dropna()
    col_value = list(set(df[col]))
    col_value.sort()
    # 计算每一个区间的卡方统计量

    chi_list = []
    pos_list = []
    expected_pos_list = []
    for value in col_value:
        df_pos_cnt = df.loc[df[col] == value, 'Defaulter'].sum()
        df_all_cnt = df.loc[df[col] == value,'Defaulter'].count()

        expected_pos_cnt = df_all_cnt * expected_ratio
        chi_square = (df_pos_cnt - expected_pos_cnt)**2 / expected_pos_cnt
        chi_list.append(chi_square)
        pos_list.append(df_pos_cnt)
        expected_pos_list.append(expected_pos_cnt)
    # 导出结果到dataframe
    chi_result = pd.DataFrame({col: col_value, 'chi_square':chi_list,                               'pos_cnt':pos_list, 'expected_pos_cnt':expected_pos_list})    return chi_resultdef chiMerge(chi_result, maxInterval=5):

    '''
    根据最大区间数限制法则，进行区间合并
    '''

    group_cnt = len(chi_result)    # 如果变量区间超过最大分箱限制，则根据合并原则进行合并，直至在maxInterval之内

    while(group_cnt > maxInterval):
        ## 取出卡方值最小的区间
        min_index = chi_result[chi_result['chi_square'] == chi_result['chi_square'].min()].index.tolist()[0]
        # 如果分箱区间在最前,则向下合并
        if min_index == 0:
            chi_result = merge_chiSquare(chi_result, min_index+1, min_index)
        # 如果分箱区间在最后，则向上合并
        elif min_index == group_cnt-1:
            chi_result = merge_chiSquare(chi_result, min_index-1, min_index)
        # 如果分箱区间在中间，则判断两边的卡方值，选择最小卡方进行合并
        else:            if chi_result.loc[min_index-1, 'chi_square'] > chi_result.loc[min_index+1, 'chi_square']:
                chi_result = merge_chiSquare(chi_result, min_index, min_index+1)            else:
                chi_result = merge_chiSquare(chi_result, min_index-1, min_index)

        group_cnt = len(chi_result)
    return chi_resultdef cal_chisqure_threshold(dfree=4, cf=0.1):
    '''
    根据给定的自由度和显著性水平, 计算卡方阈值
    '''
    percents = [0.95, 0.90, 0.5, 0.1, 0.05, 0.025, 0.01, 0.005]
    ## 计算每个自由度，在每个显著性水平下的卡方阈值
    df = pd.DataFrame(np.array([chi2.isf(percents, df=i) for i in range(1, 30)]))
    df.columns = percents
    df.index = df.index+1

    pd.set_option('precision', 3)    return df.loc[dfree, cf]def chiMerge_chisqure(chi_result, dfree=4, cf=0.1, maxInterval=5):

    threshold = cal_chisqure_threshold(dfree, cf)

    min_chiSquare = chi_result['chi_square'].min()

    group_cnt = len(chi_result)

    # 如果变量区间的最小卡方值小于阈值，则继续合并直到最小值大于等于阈值

    while(min_chiSquare < threshold and group_cnt > maxInterval):
        min_index = chi_result[chi_result['chi_square']==chi_result['chi_square'].min()].index.tolist()[0]
        # 如果分箱区间在最前,则向下合并
        if min_index == 0:
            chi_result = merge_chiSquare(chi_result, min_index+1, min_index)
        # 如果分箱区间在最后，则向上合并
        elif min_index == group_cnt-1:
            chi_result = merge_chiSquare(chi_result, min_index-1, min_index)
        # 如果分箱区间在中间，则判断与其相邻的最小卡方的区间，然后进行合并
        else:            if chi_result.loc[min_index-1, 'chi_square'] > chi_result.loc[min_index+1, 'chi_square']:
                chi_result = merge_chiSquare(chi_result, min_index, min_index+1)            else:
                chi_result = merge_chiSquare(chi_result, min_index-1, min_index)

        min_chiSquare = chi_result['chi_square'].min()

        group_cnt = len(chi_result)
    return chi_resultdef merge_chiSquare(chi_result, index, mergeIndex, a = 'expected_pos_cnt',
                    b = 'pos_cnt', c = 'chi_square'):
    '''
    按index进行合并，并计算合并后的卡方值
    mergeindex 是合并后的序列值

    '''
    chi_result.loc[mergeIndex, a] = chi_result.loc[mergeIndex, a] + chi_result.loc[index, a]
    chi_result.loc[mergeIndex, b] = chi_result.loc[mergeIndex, b] + chi_result.loc[index, b]    ## 两个区间合并后，新的chi2值如何计算
    chi_result.loc[mergeIndex, c] = (chi_result.loc[mergeIndex, b] - chi_result.loc[mergeIndex, a])**2 /chi_result.loc[mergeIndex, a]

    chi_result = chi_result.drop([index])
    ## 重置index
    chi_result = chi_result.reset_index(drop=True)
    return chi_result

## chi2分箱主流程# 1：计算初始chi2 result## 合并X数据集与Y数据集### 先对数据进行等频分箱，提高卡方分箱的效率## 注意对原始数据的拷贝import copy
chi_train_X = copy.deepcopy(train_X)### 本例先不进行等频分箱的过程'''
def get_freq(train_X, col, bind):
    col_data = train_X[col]
    col_data_sort = col_data.sort_values().reset_index(drop=True)
    col_data_cnt = col_data.count()
    length = col_data_cnt / bind
    col_index = np.append(np.arange(length, col_data_cnt, length), (col_data_cnt - 1))
    col_interval = list(set(col_data_sort[col_index]))
    return col_interval
'''    '''
for col in train_X.columns:
    print "start get " + col + " 等频 result"
    col_interval = get_freq(train_X, col, 200)
    col_interval.sort()
    for i, val in enumerate(col_interval):
        if i == 0:
            freq_train_X.loc[train_X[col] <= val, col] = i + 1

        else:
            freq_train_X.loc[(train_X[col]<= val) & (train_X[col] > col_interval[i-1]), col] = i + 1

'''    ## 对数据进行卡方分箱，按照自由度进行分箱chi_result_all = dict()for col in chi_train_X.columns:    print("start get " + col + " chi2 result")
    chi2_result = get_chi2(train, col)
    chi2_merge = chiMerge_chisqure(chi2_result, dfree=4, cf=0.05, maxInterval=5)

    chi_result_all[col] = chi2_merge

### 进行WOE编码woe_iv={} ### 计算特征的IV值def get_woevalue(train_all, col, chi2_merge):
    ## 计算所有样本中，响应客户和未响应客户的比例
    df_pos_cnt = train_all['Defaulter'].sum()
    df_neg_cnt = train_all['Defaulter'].count() - df_pos_cnt

    df_ratio = df_pos_cnt / (df_neg_cnt * 1.0)


    col_interval = chi2_merge[col].values
    woe_list = []
    iv_list = []
    for i, val in enumerate(col_interval):        if i == 0:
            col_pos_cnt = train_all.loc[train_all[col]<= val, 'Defaulter'].sum()
            col_all_cnt = train_all.loc[train_all[col]<= val, 'Defaulter'].count()
            col_neg_cnt = col_all_cnt - col_pos_cnt
        else:
            col_pos_cnt = train_all.loc[(train_all[col]<= val) & (train_all[col] > col_interval[i-1]), 'Defaulter'].sum()
            col_all_cnt = train_all.loc[(train_all[col]<= val) & (train_all[col] > col_interval[i-1]), 'Defaulter'].count()
            col_neg_cnt = col_all_cnt - col_pos_cnt
        if col_neg_cnt == 0:
            col_neg_cnt = col_neg_cnt + 1

        col_ratio = col_pos_cnt / (col_neg_cnt * 1.0)


        woei = np.log(col_ratio / df_ratio)
        ivi = woei * ((col_pos_cnt / (df_pos_cnt * 1.0)) - (col_neg_cnt / (df_neg_cnt * 1.0)))
        woe_list.append(woei)
        iv_list.append(ivi)

    IV = sum(iv_list)
    return woe_list, iv_list, IV

for col in chi_train_X.columns:
    ## 首先对特征进行分箱转化
    chi2_merge = chi_result_all[col]
    woe_list, iv_list, iv = get_woevalue(train, col, chi2_merge)
    woe_iv[col] = {'woe_list': woe_list, 'iv_list':iv_list, 'iv': iv, 'value_list':chi_result_all[col][col].values}### 计算字符变量的总体iv值
              woe_iv['Region'] = {'woe_list':[woe_iv[col]['woe_list'][1] for col in dummy_region_col], 'iv': np.sum([woe_iv[col]['iv_list'][1] for col in dummy_region_col]),'value_list':[col.split('_')[1] for col in dummy_region_col]}
woe_iv['Area'] = {'woe_list':[woe_iv[col]['woe_list'][1] for col in dummy_area_col], 'iv': np.sum([woe_iv[col]['iv_list'][1] for col in dummy_area_col]),'value_list':[col.split('_')[1] for col in dummy_area_col]}
woe_iv['Activity'] = {'woe_list':[woe_iv[col]['woe_list'][1] for col in dummy_activity_col], 'iv': np.sum([woe_iv[col]['iv_list'][1] for col in dummy_activity_col]), 'value_list': [col.split('_')[1] for col in dummy_activity_col]}
woe_iv['Properties_Status'] = {'woe_list':[woe_iv[col]['woe_list'][1] for col in dummy_status_col], 'iv': np.sum([woe_iv[col]['iv_list'][1] for col in dummy_status_col]), 'value_list':[col.split('_')[1] for col in dummy_status_col]}

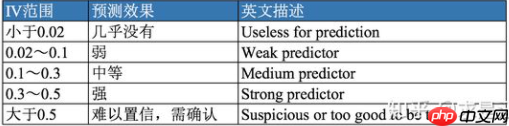

### 根据计算的IV值进行特征筛选drop_numerical = list()for col in numerical:
    iv = woe_iv[col]['iv']    if iv < 0.02:
        drop_numerical.append(col)
        chi_train_X.drop(axis=1, columns=col, inplace=True) ## 删除IV值过小的特征drop_categorical = list()for col in categorical:
    iv = woe_iv[col]['iv']    if iv < 0.02:
        drop_categorical.append(col)
        chi_train_X.drop(axis=1, columns=dummy_col_dict[col], inplace=True)

drop_binary = list()for col in binaray:
    iv = woe_iv[col]['iv']    if iv < 0.02:
        drop_binary.append(col)
        chi_train_X.drop(axis=1, columns=col, inplace=True)



numerical = list(set(numerical).difference(drop_numerical))
categorical = list(set(categorical).difference(drop_categorical))
binaray = list(set(binaray).difference(drop_binary))### 对留下的特征进行WOE编码转化,WOE编码只是为了使得评分卡的格式更加标准化，并不能提高模型的效果，分箱完过后，直接建立模型，一样可以达到目的woe_train_X = copy.deepcopy(chi_train_X)for col in numerical:
    woe_list = woe_iv[col]['woe_list']
    col_interval = woe_iv[col]['value_list']
    for i, val in enumerate(col_interval):        if i == 0:
            woe_train_X.loc[chi_train_X[col] <= val, col] = woe_list[i]        else:
            woe_train_X.loc[(chi_train_X[col] <= val) & (chi_train_X[col] > col_interval[i-1]), col] = woe_list[i]
    woe_train_X.loc[woe_train_X[col].isnull(), col] = 0for col in categorical:
    woe_list = woe_iv[col]['woe_list']
    col_interval = woe_iv[col]['value_list']
    for i, val in enumerate(col_interval):
        woe_train_X.loc[woe_train_X[dummy_col_dict[col][i]]==1 , col] = woe_list[i]
    woe_train_X.drop(axis=1, columns=dummy_col_dict[col], inplace=True)for col in binaray:
    woe_list = woe_iv[col]['woe_list']
    col_interval = woe_iv[col]['value_list']
    for i,var in enumerate(col_interval):
        woe_train_X.loc[woe_train_X[col]==var , col] = woe_list[i]

### 在数据集中加上intercept列woe_train_X['intercept'] = [1] * woe_train_X.shape[0]

train_all = pd.concat([woe_train_X, train_Y], axis=1)### 将数据集进行切分，以便后续对模型做验证from sklearn.model_selection import train_test_split### 切分训练集和测试集,按照7:3的比例进行切分train_all_train, train_all_test = train_test_split(train_all, test_size=0.3)

!pip install statsmodels

import statsmodelsimport statsmodels.api as smfimport pandas as pd

def forward_selected(train_data, target):

    remaining = set(train_data.columns)
    remaining.remove(target)
    remaining.remove('intercept')

    selected = ['intercept']
    current_score, best_new_score = float("inf"),float("inf")

    while remaining and current_score == best_new_score:
        scores_candidates = []        for candidate in remaining:            #formula = "{} ~ {} + 1".format(target,  ' + '.join(selected + [candidate]))
            score = smf.Logit(train_data[target], train_data[selected + [candidate]] ).fit().bic            #score = smf.logit(formula, train_data).fit().bic

            scores_candidates.append((score, candidate))

        scores_candidates.sort(reverse = True)        print(scores_candidates)

        best_new_score, best_candidate = scores_candidates.pop()
        if current_score > best_new_score:
            remaining.remove(best_candidate)
            selected.append(best_candidate)
            current_score = best_new_score
    #formula = "{} ~ {} + 1".format(target, ' + '.join(selected))
    model = smf.Logit(train_data[target], train_data[selected]).fit()
    return model


model = forward_selected(train_all_train, 'Defaulter')print(model.params)
print(model.bic)

##### 对模型中的每个变量做wald 卡方检验for col in model.params.index:
    result = model.wald_test(col)    print(str(col) + " wald test: " + str(result.pvalue))

### 查看VIF值from statsmodels.stats.outliers_influence import variance_inflation_factor


train_X_M = np.matrix(train_all_train[list(model.params.index)])

VIF_list = [variance_inflation_factor(train_X_M, i) for i in range(train_X_M.shape[1])]print(VIF_list)

### 重新训练模型 ##model = smf.Logit(train_all_train['Defaulter'], train_all_train[list(model.params.index)]).fit()

### from sklearn.metrics import auc,roc_curve, roc_auc_scorefrom sklearn.metrics import precision_score, recall_score, accuracy_score## 用拟合好的模型预测训练集## 首先将数据集的X和Y进行区分train_all_train_X = train_all_train[list(model.params.index)]
train_all_train_Y = train_all_train['Defaulter']

train_all_test_X = train_all_test[list(model.params.index)]
train_all_test_Y = train_all_test['Defaulter']

y_train_proba = model.predict(train_all_train_X)## 用拟合好的模型预测测试集y_test_proba = model.predict(train_all_test_X)### 计算训练集的AUC值roc_auc_score(train_all_train_Y, y_train_proba)### 计算测试集的AUC值roc_auc_score(train_all_test_Y, y_test_proba)import matplotlib.pyplot as plt### 绘制roc曲线fpr, tpr, thresholds = roc_curve(train_all_test_Y, y_test_proba, pos_label=1)
auc_score = auc(fpr,tpr)
w = tpr - fpr
ks_score = w.max()
ks_x = fpr[w.argmax()]
ks_y = tpr[w.argmax()]
fig,ax = plt.subplots()
ax.plot(fpr,tpr,label='AUC=%.5f'%auc_score)
ax.set_title('Receiver Operating Characteristic')
ax.plot([0, 1], [0, 1], '--', color=(0.6, 0.6, 0.6))
ax.plot([ks_x,ks_x], [ks_x,ks_y], '--', color='red')
ax.text(ks_x,(ks_x+ks_y)/2,'  KS=%.5f'%ks_score)
ax.legend()
fig.show()

### 采用其他模型进行训练，评估效果from sklearn.ensemble import AdaBoostClassifierfrom sklearn.ensemble import GradientBoostingClassifierfrom sklearn.ensemble import RandomForestClassifierfrom sklearn.ensemble import BaggingClassifierfrom sklearn.ensemble import ExtraTreesClassifier


x_col = list(set(train_all_train.columns).difference(set(['Defaulter'])))
train_all_train_X = train_all_train[x_col]
train_all_train_Y = train_all_train['Defaulter']

train_all_test_X = train_all_test[x_col]
train_all_test_Y = train_all_test['Defaulter']## 建立不同的分类器模型 model = GradientBoostingClassifier()

model.fit(train_all_train_X, train_all_train_Y)## 用拟合好的模型预测训练集y_train_proba = model.predict_proba(train_all_train_X)
y_train_label = model.predict(train_all_train_X)## 用拟合好的模型预测测试集y_test_proba = model.predict_proba(train_all_test_X)
y_test_label = model.predict(train_all_test_X)print('训练集准确率：{:.2%}'.format(accuracy_score(train_all_train_Y, y_train_label)))print('测试集准确率：{:.2%}'.format(accuracy_score(train_all_test_Y, y_test_label)))print('训练集精度：{:.2%}'.format(precision_score(train_all_train_Y, y_train_label)))print('测试集精度：{:.2%}'.format(precision_score(train_all_test_Y, y_test_label)))print('训练集召回率：{:.2%}'.format(recall_score(train_all_train_Y, y_train_label)))print('测试集召回率：{:.2%}'.format(recall_score(train_all_test_Y, y_test_label)))print('训练集AUC：{:.2%}'.format(roc_auc_score(train_all_train_Y, y_train_proba[:,1])))print('测试集AUC：{:.2%}'.format(roc_auc_score(train_all_test_Y, y_test_proba[:,1])))
